LEDCURE Portable UV Radiometer

LEDCURE radiometer

The LEDCURE is a portable UV measuring device for the determination of the UV irradiance and energy. This radiometer, remotely triggerable, is adapted to measurement on production lines, conveyors and inside chamber units.

The LEDCURE is a portable UV radiometer designed for measuring irradiance (from 200mW/cm² to 40W/cm²) and energy (from 0 to 250J/cm²) data in industrial and research applications. It consists of a UV sensor integrated into a puck, all supplied in a carrying case.

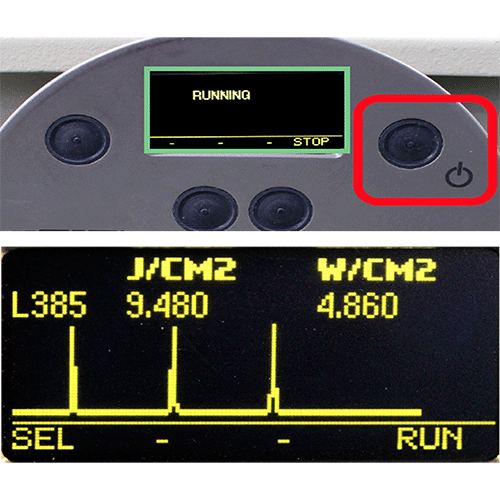

The system includes a display screen and all the necessary buttons for operation, measurement, and data reading. The sensor can be calibrated for different UV radiation sources, and a model is available that accommodates four sensors at 365, 385, 395, and 405 nm.


Technical Datasheet

- General Parameters -


Designed for precision and ease of use, the system offers:

  • Easy-to-use : Single push button operation to turn the unit on, collect & view the data (irradiance & energy density) and irradiance profile.
  • Measurement band : Specified at the time of order between 365, 385, 395 and 405nm. All four sensors can be integrated into one 4-bands radiometer version.
  • Operating range : For irradiance (given in W/cm²) from 200mW/cm² to 40W/cm² and for energy (given in J/cm²) from 0 to 250J/cm²
  • Selectable sample modes : Adjustable between 25, 128 et 2048 equivalent samples/seconde.

- Available Wavelengths -


Number of bands 1-band 1-band 1-band 1-band 4-bands
Wavelength (nm) 365 385 395 405 365-385-395-405
Mesurement range 340-392nm 360-412nm 370-422nm 380-432nm 340-432nm
Part number LEDCURE-365 LEDCURE-385 LEDCURE-395 LEDCURE-405 LEDCURE-365-385-395-405


UV wavelengths range: UVA.
