UV OVEN UV Curing Box

UV OVEN is an UV curing box for bonding, curing, drying, hardening and photolithography applications.

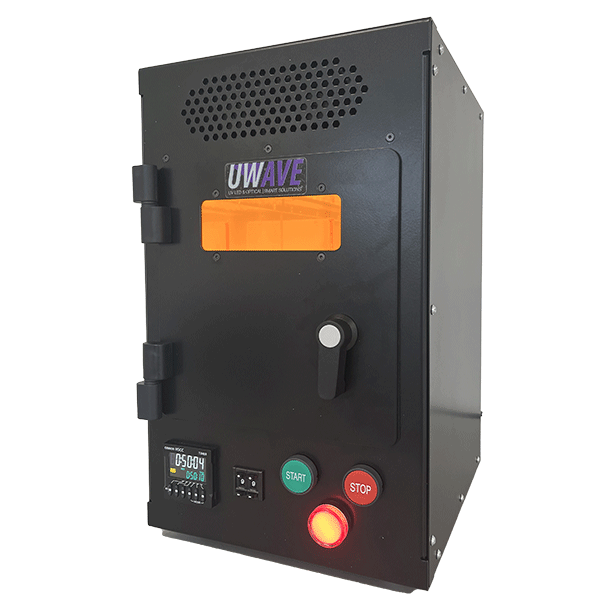

The UV OVENTM is a compact UV LED irradiation oven suitable for a wide range of applications: bonding, curing, drying, hardening and photolithography.

Thanks to its ergonomic design, the UV OVENTM gives you full control over your UV insolation processes and a great repeatability. You will be able to adjust UV curing time and intensity.
With these combined features the UV OVENTM is the ideal UV LED irradiation oven for semi-automatic UV curing processes or R&D lab work to cure UV coatings, adhesives, inks, and glues.

  • Plug&Play - Immediate establishment for a simplified use.
  • Safe - Secured chamber with an efficient & smart UV protection for the operator.
  • Ergonomic - Integrates a powerful LED lamp and its electronics in a compact design.
  • Uniform light distribution - More than 90% homogeneity on irradaited area.

Product Description
Datasheet

- General Parameters -


Process parameters can be easily selected and changed to fit your specifications such as the insolation intensity and cycel time.

  • Time setting range: from 1s to 100min with a 1s resolution.
  • Power setting range: from 10% to 99% with a 1% resolution.
  • Status LED: RED to indicate that the UV OVENTM is ready for use & GREEN to indicate the cycle is performing.

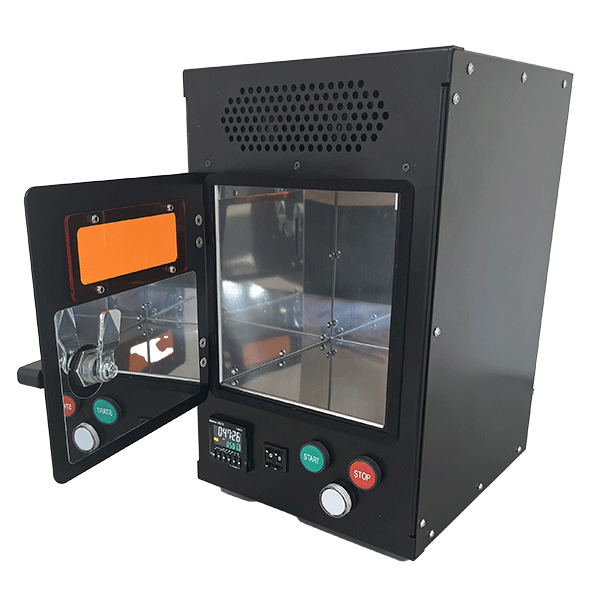

UV CHAMBER is a completely secured Plug&Play UV LED system. Easy-to-use it is ideal for semi-automated processes.

- Available Wavelengths -


Range UV-A Blue
ZZZ: Wavelength (nm) 365 385 395 405 465

Part number: UV-OVEN-ZZZ

UV wavelengths range: UVA, UVB & UVC.
