UFLUO-LINE: UV LED Lamp for Testing and NDT

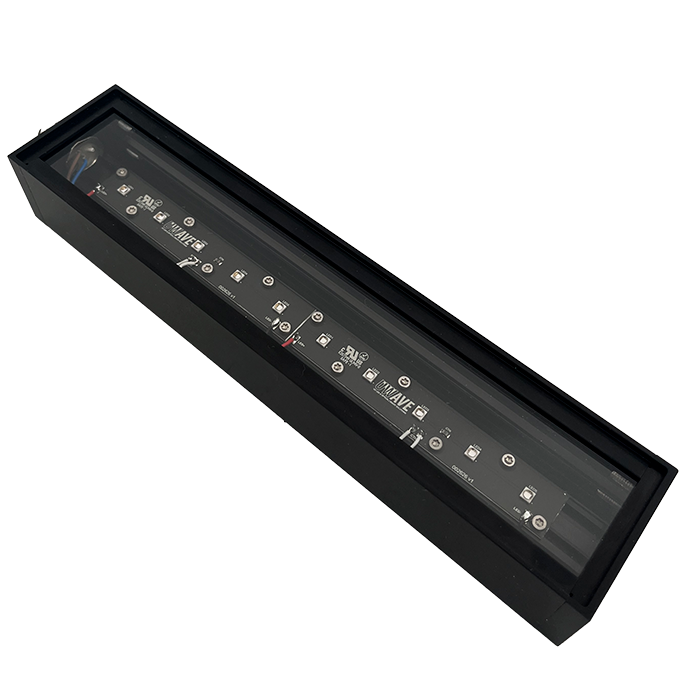

UFLEX: Flexible UV Line Flood (Curing, Bonding, NDT and Fluorescence)

The UFLUO-LINE is a flexible and homogeneous UV LED flood lamp suitable for a wide range of fluorescence process such as non-destructive testing examinations or detection . Many wavelengths can be integrated into this line depending on the request and applications such as UVC version USTERI-LINE for disinfection process.
Thanks to its high-intensity UV-A illumination, integrated electronics, and flexible length, the UFLUO-LINE stands as an ideal lighting solution for inspection and wash station.

Robust and lightweight design to facilitate integration in harsh environments
Certified to NDT standards for emission spectrum and beam profile : ASTM E3022, EN ISO 3059 and CEN TR 16638

Many versions available:

Standard IP54 or liquid proof IP67
Flexible length to fit mechanical needs: from 10cm to 120cm
Optical window material: PMMA, borosilicate or quartz + option for specific Wood filter

Product Description Technical Datasheet

- Available Wavelengths -

Range	● UV-C	● UV-B	● UV-A	● Blue	● Green	● Infrared
ZZZ: Wavelength	255 nm 265 nm 275 nm	295 nm 305 nm 310 nm 325 nm	365 nm 385 nm 395 nm 405 nm	450 nm 465 nm	525 nm	780 nm 850 nm 940 nm

UV wavelengths range: UVA, UVB, UVC, Blue, Green & Infrared

Part number: UFLUO-LINE-ZZZ...

Any other wavelength available upon request. (UV-C, UV-B, Visible, IR)

- Flexible Length -

The UFLUO-LINE is a UV LED lighting with a flexible length to fit mechanical specifications and constraints.

Indeed, optical length can be adjusted using 5 LED increments (meaning 10cm increments) to meet process requirements.

L2 option is available for less powerful process, so only one LED every 2 positions using 5 LED increments (meaning 20cm increments here)

UFLEX: Adjustable UV LED light (10cm increments) for flexible integration in various applications.

Optical Length	20 cm	40 cm	60 cm	10 cm	120 cm
YYY: Length L1	20	40	60	100	120
YYY: Length L2	10	20	30	50	60

Part number: UFLUO-LINE-YYY-ZZZ-(L2-)

- IP67 Compact version -

Compact version (-IP) option is a specific version for UFLUO-LINE to be used in harsh environments and wash stations.

Its robust, non-openable mechanical design complies with IP67 standard for water, vapor and dust protection.

Part number:UFLUO-LINE-IP-IP-YYY-ZZZ

-UFLUO-LINE for Non Destructive Testing (NDT) -

UFLUO-LINE – EN ISO 3059 : The UFLEX with selected 365nm LED is suitable for non-destructive testing according to EN ISO 3059 standard.

UFLUO-LINE – ASTM E3022 : Equipped with 365nm LED and the adapted Wood filter, the UFLEX 365nm is made for fluorescent penetrant and magnetic particle testing and is compliant with ASTM E3022 standard.

UFLUO-LINE – CEN TR 16638 : The 450nm version of UFLEX with dichroic filter is compliant with CEN TR 16638 standard for inspection under blue light.

UWAVE has its own UV measurement laboratory, guaranteeing optimal performance and complete traceability. All our measuring equipment is verified by our partner BABBCO, a recognized specialist in NDT applications and radiometer calibrations.

Essais-non-destructifs : Contrôle qualité et détection de fissures ou défauts sur pièces industrielles.
