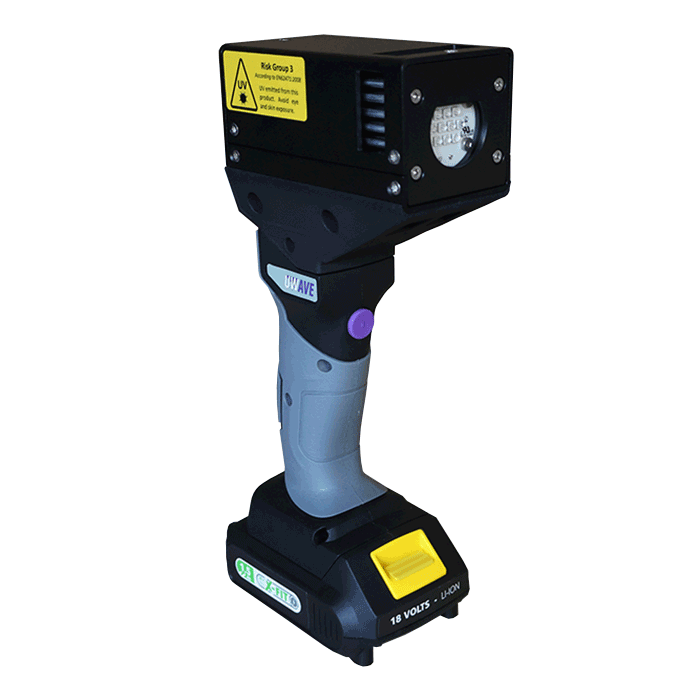

UCURE-HAND Handheld & Powerful UV LED Curing Lamp
The UCURE-HAND is a powerful, portable, and cordless UV LED curing lamp designed for simple and manual UV curing applications. This cost-effective handheld device allows operators to easily position the UV source directly over the area to be cured, making it particularly suitable for applications requiring localized irradiation and absolute freedom of movement.
Featuring 10 powerful UV LEDs, the UCURE-HAND adaptably fits your specific process. The Standard version is available in your choice of UVA wavelength (365 nm, 385 nm, 395 nm, or 405 nm). For advanced industrial needs, the High Power version offers ultimate flexibility, custom-configured with any specific wavelength required—ranging from UVC and UVB to UVA, visible, and infrared spectra (255 nm to 940 nm, including 265, 275, 295, 305, 310, 325, 450, 465, 525, 780, 850, and 940 nm).
The cordless design is powered by an 18V rechargeable Li-ion battery, providing more than 4 hours of continuous operation with a fully charged battery. Combined with its lightweight construction, the UCURE-HAND offers comfortable handling during repeated or extended manual operations.
The UCURE-HAND is particularly suitable for applications requiring:
- PMMA, acrylic, and glass bonding: Perfect for high-strength structural adhesive curing on plastics.
- Automotive bodywork & clear coat drying: Ideal for localized spot repairs, UV varnish, and smart repair applications.
- Electronics assembly & conformal coating: Fast precision curing for components, potting resins, and PCB protection.
- Rapid prototyping & laboratory research: Flexible UV source tailored for testing UV-sensitive materials and resins.
- Industrial manual masking & spot-curing: Direct and targeted irradiation for complex manufacturing processes.
Whether used for individual manual operations, prototyping, or maintenance, the UCURE-HAND is the ideal handheld UV workshop light for your workbench. It provides a highly flexible and efficient curing solution wherever direct and mobile UV irradiation is required.
- Available Wavelengths -
| Model | ● UV-C | ● UV-B | ● UV-A | ● Blue | ● Green | ● Infrared |
|---|---|---|---|---|---|---|
| Standard version ZZZ: Wavelength |
365 nm 385 nm 395 nm 405 nm |
|||||
| High Power ZZZ: Wavelength |
255 nm 265 nm 275 nm |
295 nm 305 nm 310 nm 325 nm |
365 nm 385 nm 395 nm 405 nm |
450 nm 465 nm |
525 nm | 780 nm 850 nm 940 nm |
Reference : UCURE-HAND-ZZZ
Any other wavelength available upon request. (UV-C, UV-B, Visible, IR)
- Power Versions Available -
Two power versions of UCURE-HAND are available to adapt the irradiance to different application requirements. The Standard version provides up to 1 W/cm², while the High Power version delivers up to 3 W/cm² and is 5 times more powerful than the standard version.
This flexibility allows users to select the appropriate power level according to the material, process and curing requirements.
Part number:
Standard version: UCURE-HAND-ZZZ
High-power HP version: UCURE-HAND-HP-ZZZ

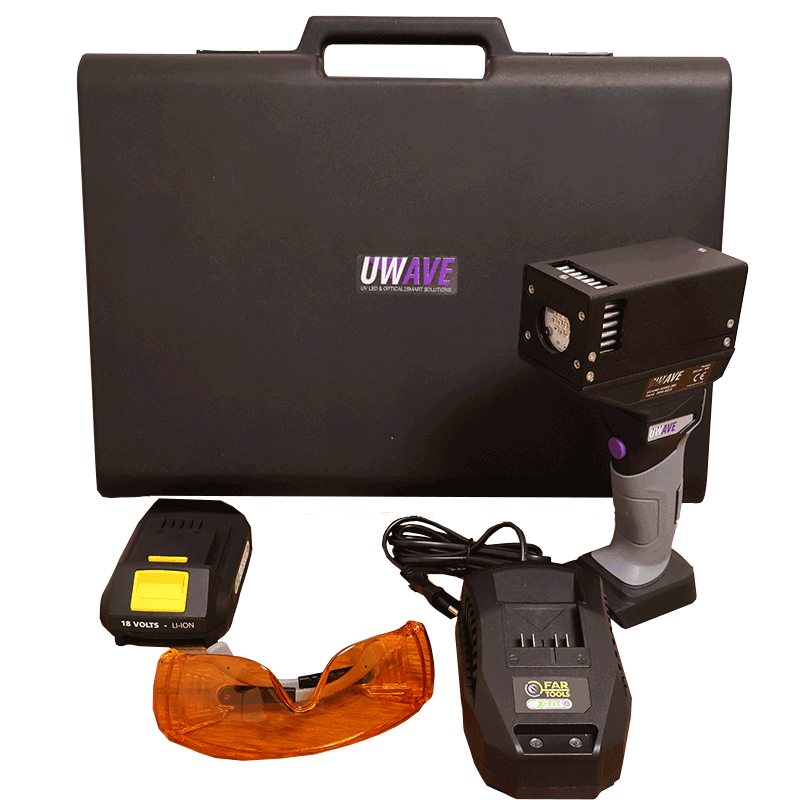

- Complete Kit -
The UCURE-HAND is delivered in a complete suitcase to simplified its use.
This kit features every needed accessories for an efficient & secured UV process:
- 1x UCURE-HAND
- 1x 18V 1,5Ah Rechargeable Battery
- 1x Battery Charger
- 1x UV Protective Glasses
Part number : KIT-UCURE-HAND
