UPIN Thin & Powerful UV Curing Line

UPIN caracterises UWAVE's know-how by combining power and precision in the same product. It is suitable for high-precision printing applications: screenprinting in cosmetics or pre-curing for inkjet printing for example.

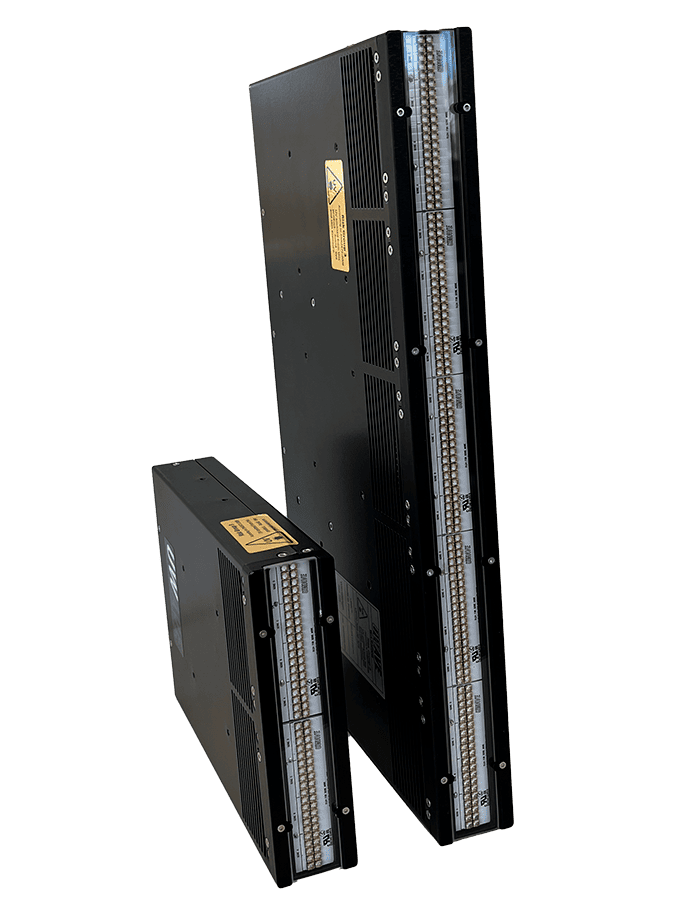

The UPINTM is a thin and powerful UV LED linear curing lamp designed for high-precision processes.

The UPINTM characterizes UWAVE's optical know-how by combining power and precision in the same product.
Its simple, compact and low-cost design make the UPIN suitable for pinning, gelling, pre-curing & edge curing applications.

  • High-precision to concentrate at best all optical power on a thin line.
  • Flexible system length to fit mechanical specifications from 75mm to to 900mm.
  • Easy to integrate on insolation or pre-insolation devices.

Product Description
Datasheet

- Available Wavelengths -


Range UV-C UV-B UV-A Blue
ZZZ: Wavelength (nm) 275 305 365 385 395 405 465

Part number: UPIN-ZZZ...

logoAny other wavelength available upon request. (UV-C, UV-B, Visible, IR)

UV wavelengths range: UVA, UVB & UVC.

- Optical Option -


Thanks to its innovative optical option, the UPINTM provides a more powerful and thinner UV concentrated line.

It allows you to preserve screen-printing screens during any curing processes that may require extreme precision.

Optical Option Standard UPINTM FOC Optic
Maximum Irradiance 2.000 mW/cm² 4.000 mW/cm²

UV light differences between UPIN standard & UPIN with focalized optics.


Part number: UPIN-FOC

Thanks to its innovative optical option, the UPIN provides a more powerful and thinner UV concentrated line.

- Flexible Length -


Optical length of the UPINTM can be adjusted with 75 mm unit increments to fit the process needs:

Optical Length 75 mm 150 mm 225 mm 300 mm 375 mm
XXXX: Length 0075 0150 0225 0300 0375

Part number: UPIN-ZZZ-XXXX

logoSeveral UPIN can be put side by side to provide a longer UV LED linear curing lamp without losing optical homogeneity.

Example: If you need a 600mm UV LED linear pre-curing lamp, you can put two UPIN 300mm side by side or call us for a custom UV LED curing lamp.

Optical length of the UPIN can be adjusted with 75 mm unit increments to fit the process needs.

- UVC Disinfection -


UWAVE has developed a UVC version of the UPINTM to meets actual concerns on contamination and spread of virus and bacteria.

Equipped with a handle and the best 275nm LED in the market, this product will allow a quick & easy disinfection process for small surfaces or objects.
Delivered in a complete & easy-to-use kit, the UPINTM provides an adapted solution for operator disinfection applications:

  • 1x UPIN-275 with its integrated handle
  • 1x Power Supply Cable
  • 1x UV Protection Face Mask

Part number: KIT-UPIN-275


UVC Applications
Other UVC Products
UPIN UVC, manual UV disinfection solution. Equipped with a handle and the best 275nm LED in the market, this product will allow a quick & easy disinfection process for small surfaces or objects.
