UFIBER Precision UV LED Spot Curing Device
The UFIBER is a compact and highly precise UV LED spot curing system designed for applications requiring controlled and accurate UV exposure. Engineered for precision bonding and curing processes, the UFIBER delivers consistent UV light exactly where it is needed, ensuring efficient curing of UV-curable adhesives, coatings, and encapsulants.
LED wavelengths 365 nm, 385 nm, 395 nm and 405 nm are available for your requirement. UVC LED with 255 nm, 265 nm or 275 nm, UVB LED with 295 nm, 305 nm, 310 nm or 325 nm, visible LED with 450 nm, 465 nm, 525 nm or infrared 780 nm, 850 nm or 940 nm can also be integrated for specific applications.
Thanks to its modular optical design, the UFIBER provides excellent flexibility for different curing requirements. The system is equipped with five interchangeable lenses – Window, Large, Medium, Focus, and Collimated – allowing operators to easily adapt the UV beam to specific applications. This versatility makes the device suitable for both low-volume precision work and higher-volume production environments.
Its compact footprint allows easy mechanical integration into manual workstations as well as automated production equipment. By delivering controlled and repeatable UV exposure, the UFIBER helps improve process stability while reducing curing times and minimizing the risk of defects during delicate assembly operations.
The UFIBER is particularly well suited for curing UV adhesives, coatings, and encapsulation materials used in industries such as:
- Precision manufacturing applications
- Industrial bonding and sealing
- Medical device manufacturing
- Optics and photonics
- electronics assembly
Designed with efficiency in mind, the UFIBER operates with low energy consumption while maintaining a high level of curing performance. This makes it an economical solution for manufacturers looking to optimize production costs without compromising curing quality or reliability.
With its combination of precision optics, interchangeable lenses, and compact design, the UFIBER provides a flexible and reliable solution for UV LED spot curing applications. It enables technicians, engineers, and production specialists to achieve fast, repeatable, and high-quality curing results in demanding industrial environments.
- Available Wavelengths -
| Range | ● UV-C | ● UV-B | ● UV-A | ● Blue | ● Green | ● Infrared |
|---|---|---|---|---|---|---|
| ZZZ: Wavelength | 255 nm 265 nm 275 nm |
295 nm 305 nm 310 nm 325 nm |
365 nm 385 nm 395 nm 405 nm |
450 nm 465 nm |
525 nm | 780 nm 850 nm 940 nm |
Part number: UFIBER-ZZZ
Any other wavelength available upon request. (UV-C, UV-B, Visible, IR)
- Power Supply Unit -

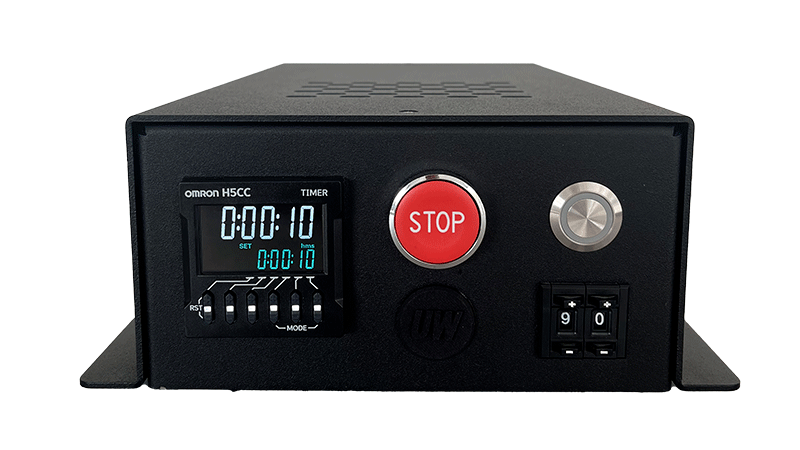

The UPOWER power supply unit allows the control of up to 6 UFIBER simultaneously.
Insolation parameters like cycle time and intensity percentage are easily adjustable manually or automatically with an external PLC:
- Possibility to control simultaneously from 1 to 6 UFIBER.
- Semi-automatic operations: SWITCH mode allows the use of a footswitch.
- Automatic operations: EXTERNAL CONTROL mode allows smart communication with a PLC.
- Optical System Available -
5 different lenses can be set on the UFIBER to get different optical performances (power, spot size...):
| WWWWW: Lens | WINDOW | LARGE | MEDIUM | FOCUS | COL |
|---|---|---|---|---|---|
| Maximum Irradiance at 10 mm | 150 mW/cm² | 250 mW/cm² | 350 mW/cm² | 1000 mW/cm² | 260 mW/cm² |
| Spot diameter of 10 mm | 18 mm | 13 mm | 10 mm | 6 mm | 10 mm |
Part number: OPTIC-WWWWW-UFIBER
