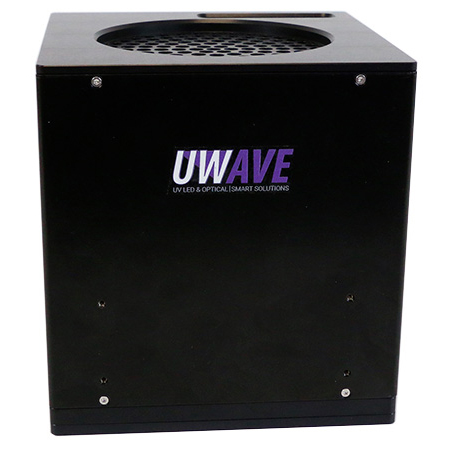

Ucube-20: High-Power UV Flood Lamp for Diverse Applications

UCUBE-20: 20x20cm UV Flood Lamp (Curing, Bonding)

The UCUBE-20 is a homogeneous & powerful UV LED flood curing lamp designed for repeatable and very large irradiation area processes.

Its great homogeneity associated to a consistent illumination makes this UV LED flood curing lamp suitable for a wide range of applications such as curing, bonding, photolithography or photoaging.

A 200mm x 200mm UV emitting window.
Collimated beam - Homogeneity up to 90%.
Easy to integrate on the UV CHAMBER for safe and repeatable processes.

Brochure	Datasheet

- Available Wavelengths -

Range	● UV-C	● UV-B	● UV-A	● Blue	● Green	● Infrared
ZZZ: Wavelength (nm)	255 265 275	295 305 310 325	365 385 395 405	450 465	525	780 850 940

UV wavelengths range: UVA, UVB, UVC, Blue, Green & Infrared.

Part number: UCUBE-20-ZZZ

Any other wavelength available upon request. (UV-C, UV-B, Visible, IR)

- Optical Option -

The standard UCUBE-20 has a dispersive UV illumination, but an optional collimated beam optics can be integrated to keep at least 85% of the global irradiance at 10cm working distance.

UWAVE engages its know-how to allow you to benefit from a powerful and homogeneous UV flux at higher working distances by avoiding UV rays’ dispersions and losses.

UCUBE: Standard vs. Collimated Optics (Focused UV Light)

Part number: UCUBE-20-ZZZ-COL

UCUBE: Collimation optics for consistent UV power at a distance.

- UCUBE range -

Depending on technical specifications et size of exposed area, the UCUBE range offers other sizes than the UCUBE-20 :

UCUBE-10 10x10cm Window	UCUBE-15 15x15cm Window

- Related Accessories -

The UCUBE-20 can easily be integrated on a UV CHAMBER to facilitate irradiation with a Plug&Play device and work in a completely safe unit with no PPE needed.

UWAVE also offers UPOWER control units to supply the lamp and adjust parameters (timer, intensity...) manually or thanks to a PLC.

UV CHAMBER	UPOWER

UCUBE-15 integrated on a safe Plug&Play UV CHAMBER.
